Pipe Support Rubber Insert

Pipe Support  Rubber Insert
Pipe Support Rubber Insert
Send Inquiry
Product Code : 10
Product Description

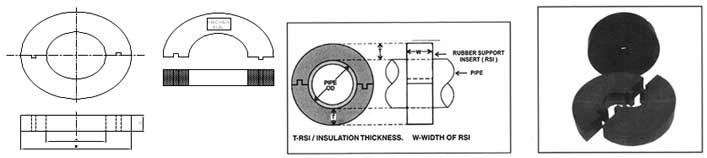

DRG:- NRRI-012

NAME:- PIPE SUPPORT RUBBER INSERT

METERIAL:- NATURAL RUBBER

HARDNESS:- S/A 85o+ 5o

CLOUR:- BLACK

Date : -

19 / 12 / 2016.


Normal pipe Size

Schedule 40

Insert

Insert OD

Hight

Insert OD

Hight

Insert OD

Hight

Insert OD

Hight

Insert OD

Hight

Insert OD

Hight

Insert OD

Hight

S.L.

Inches

mm

Steel Pipe

ID mm "A"

19 mm "B"

" C "

25 mm " B"

" C "

32 mm "B"

" C "

38 mm " B"

" C "

50 mm " B"

" C "

65 mm "B"

" C "

75 mm "B"

" C "

No.



OD mm

+ 1 mm

+ 1 mm

+ 1 mm

+ 1 mm

+ 1 mm

+ 1 mm

+ 1 mm

+ 1 mm

+ 1 mm

+ 1 mm

+ 1 mm

+ 1 mm

+ 1 mm

+ 1 mm

+ 1 mm

1

1/2"

15

21.3

21.3

59.3

25

71.3

25

85.3

25

97.3

25

121.3

25

151.3

25

171.3

25

2

3/4"

20

26.7

26.7

64.7

25

76.7

25

90.7

25

102.7

25

126.7

25

156.7

25

176.7

25

3

1"

25

33.4

33.4

71.4

25

83.4

25

97.4

25

109.4

25

133.4

25

163.4

25

183.4

25

4

1.1/4"

32

42.1

42.1

80.1

25

92.1

25

106.1

25

118.1

25

142.1

25

172.1

25

192.1

25

5

1.1/2"

40

48.2

48.2

86.2

25

98.2

25

112.2

25

124.2

25

148.2

25

0.2

25

198.2

25

6

2"

50

60.3

60.3

98.3

25

110.3

25

124.3

25

136.3

25

160.3

25

190.3

25

210.3

25

7

2.1/2"

65

73

73

111

38

123

38

137

38

143

38

173

38

203

38

223

38

8

3"

80

88.9

88.9

126.9

38

138.9

38

152.9

38

164.9

38

188.9

38

218.9

38

238.9

38

9

3.1/2"

90

101.6

101.6

139.6

38

151.6

38

165.6

38

177.6

38

201.6

38

231.6

38

251.6

38

10

4"

100

114.3

114.3

152.3

38

164.3

38

178.3

38

190.3

38

214.3

38

244.3

38

264.3

38

11

5"

125

141.3

141.3

179.3

38

191.3

38

205.3

38

217.3

38

241.3

38

271.3

38

291.3

38

12

6"

150

168.3

168.3

206.3

50

218.3

50

232.3

50

244.3

50

268.3

50

298.3

50

318.3

50

13

8"

200

219.1

219.1

257.1

50

269.1

50

283.1

50

295.1

50

319.1

50

349.1

50

369.1

50

14

10"

250

273

273

311

50

323

50

337

50

349

50

373

50

403

50

423

50

15

12"

300

323.8

323.8

361.8

50

373.8

50

387.8

50

399.8

50

423.8

50

453.8

50

473.8

50

16

14"

350

355.6

355.6

393.6

50

405.6

50

419.6

50

431.6

50

455.6

50

485.6

50

505.6

50

17

16"

400

406.4

406.4

444.4

50

456.4

50

470.4

50

482.4

50

506.4

50

536.4

50

556.4

50

18

18"

450

457.2

457.2

495.2

50

507.2

50

521.2

50

533.2

50

557.2

50

487.2

50

607.2

50

19

20"

500

508

508

546

50

558

50

572

50

584

50

608

50

638

50

658

50

20

24"

600

609.6

609.6

647.6

50

659.6

50

673.6

50

685.6

50

709.6

50

739.6

50

759.6

50

Construction Features:- Very high load bearing capacity, Unique looks in all size, dimensionally accurate in all size, good finish.

Technical Data : -

  • Temperature range : - 0oC to 80oC, Polimer:- 30%, Shore hardness " A " 85o + 5o, All dimension in mm.
  • Thermal Conductivity : - 0.16 W / moC, Density : - 1400 kg / m3
  • General Tolerance:- All dimensionally tolerance range mention in the specification.
  • Standard : - BS - 3974 - 1
