Metal Sandwich Rubber Pad Double Metal Plate (Sq.)

Metal Sandwich Rubber Pad Double Metal Plate (Sq.)
Metal Sandwich Rubber Pad Double Metal Plate (Sq.)
Send Inquiry
Product Code : 02
Product Description

MODEL NO. NRMSRDP (S) - 102


MODEL

SIZE INCHES

NRMSRDP(S) - 102

6" X 6" X 1.1/4"

NRMSRDP(S) - 102- A

4" X 4" X 1.1/4"

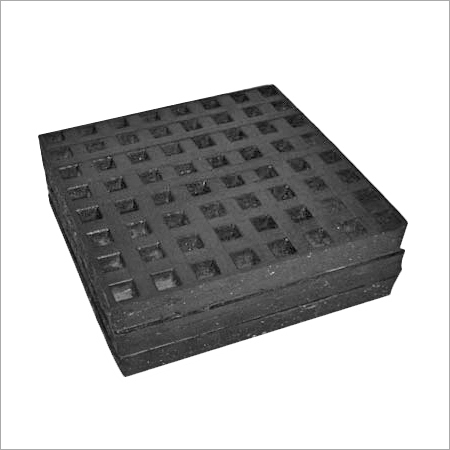

Square cell design rubber pad (Double)

Application :

  • Wherever bolting is to be avoided and minor, non-critical vibration conditions exist. (pumps, motors, air-conditioning unit’s, generators etc.)

Notes :

  • Material: Natural Rubber - S/A - 55o + 5o with double metal plate.
  • 10 mm thickness three rubber sheet separated by two 1 mm 2 pcs. metal plate.
  • Maximum loading: 60 lbs/sq.in.
  • Working range: 15 to 55 lbs/sq.in.

Features :

  • Alternate squire cell design construction with inbuilt suction cups provide.
  • Excellent sound attenuation capability.
  • No bolting required.
  • Simple field installation.
